Twin Cam 88 Torque Pattern and Spec

Torque to 90-120 in-lb

**Be sure to use the oil pump centering tool and follow the procedure to center the oil pump before tightening**

Torque the sprockets to  15ft-lb with the bike in gear and rear brake locked or the sprocket lock in place.

Back off the bolts 360 deg and torque to 34ft-lb and 24ft-lb respectively

122-155 in-lb

Torque to 90-120 in-lb  in cross pattern

Torque Rocker Arm Support Assy to 18-22ft-lb. Tighten breather cover bolts to 90-120 in-lb

Torque Rocker Cover Bolts to 15-18ft-lb

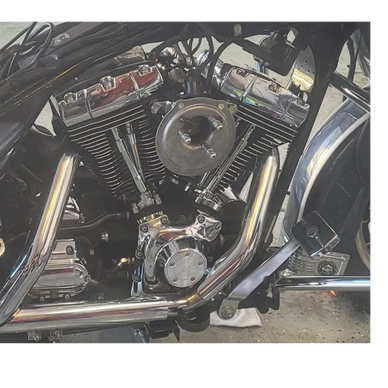

Complete Reassembly and GO RIDE!!
